Pur-Pir Insulated Corner Panel
Overview

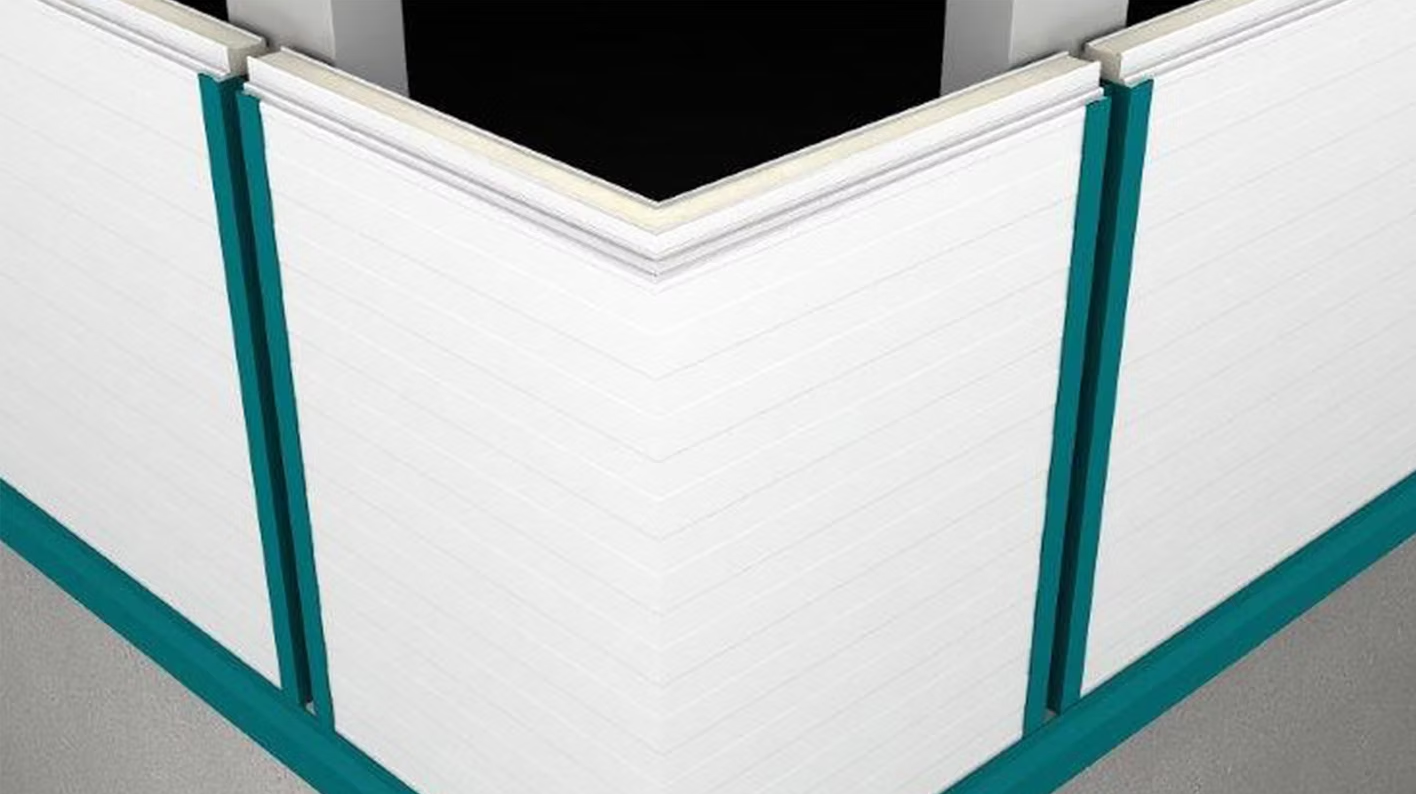

- Corner panels eliminate thermal bridges, maintain visual integrity, save on accessories, and save time.
- The Cephepan corner panel has a form that allows for horizontal installation. Pur and Pır insulation provide full corner coverage, providing high thermal, sound, and fire insulation.
- Corner panels, which can be produced in the size range of min. 300/300 mm and max. 1000/1000 mm, are of consistently high quality, stylish and economical with factory production.
Technical Specifications
- Insulation Thicknesses
- 40-50-60-80-100 mm
- Insulation Density
- PUR 38-40 (±2) kg/m3
- PIR 40-42 (±2) kg/m3
- Metal Thickness/Inner Surface/BGS
- 0.35-0.40-0.50-0.60-0.70 mm
- Metal Thickness/External Surface/BGS
- 0.50-0.60-0.70 mm
- Thermal Conductivity Coefficient
- λ = 0.022 W/mK
