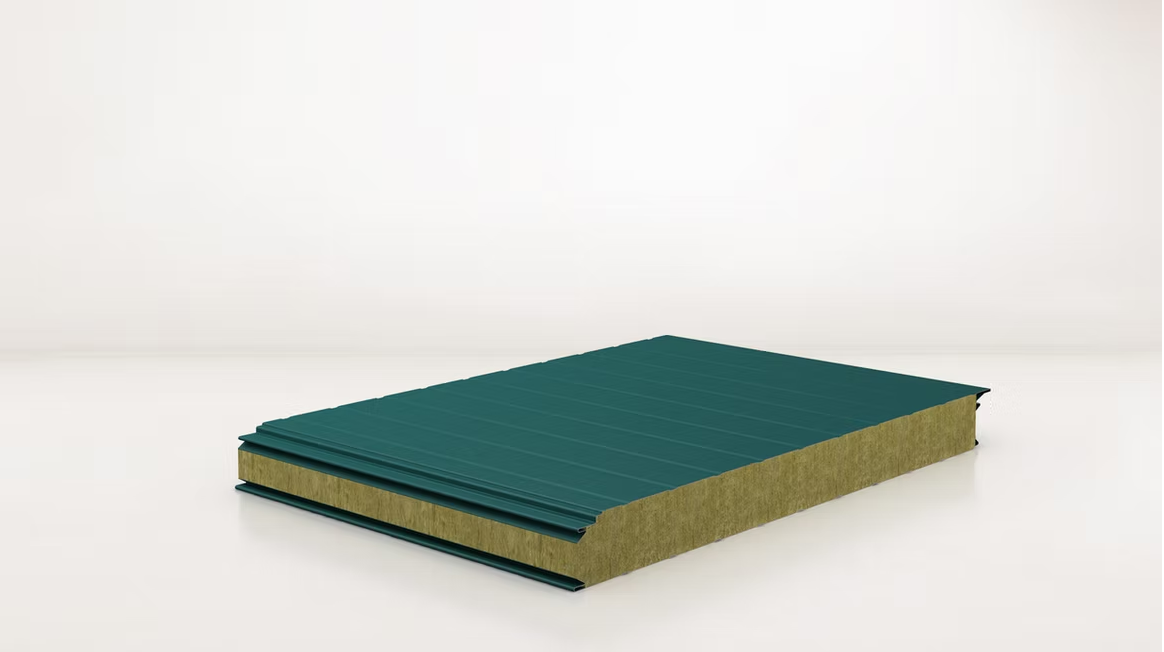

Hidden Screw Facade Panel with Rockwool/Glasswool Insulation
Overview
- Our hidden screw facade panels with rock wool and glass wool insulation offer high heat, water, sound insulation and fire resistance.

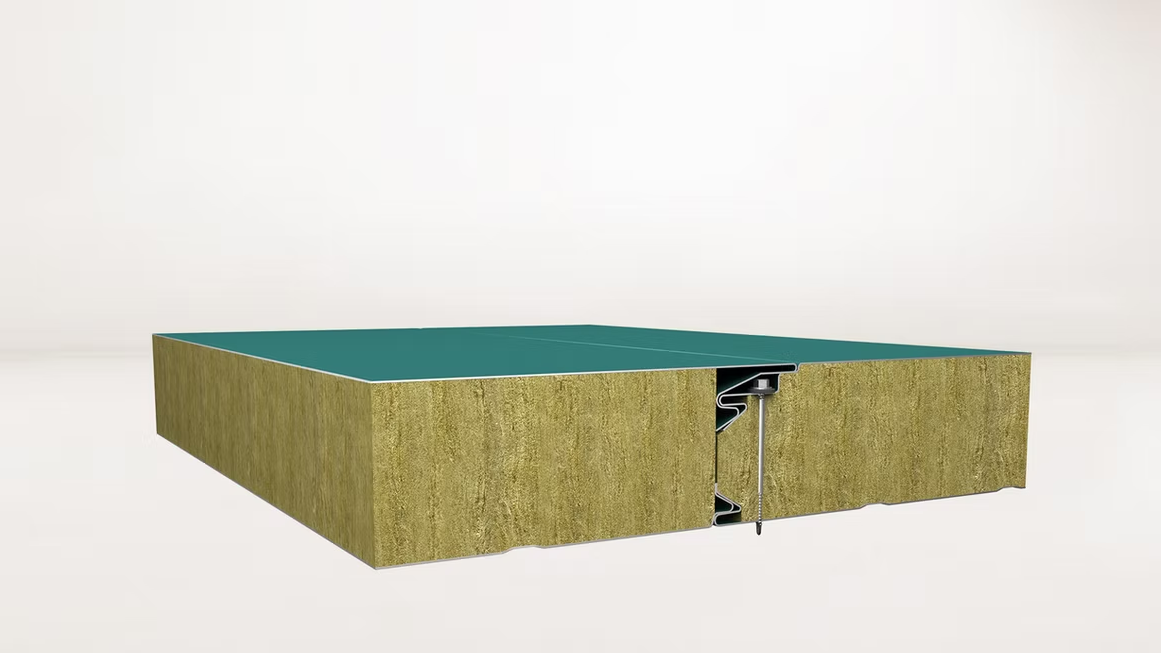

- Thanks to the form feature of Sandwich Panels, the screws are invisible from the outside and provide an aesthetic appearance.

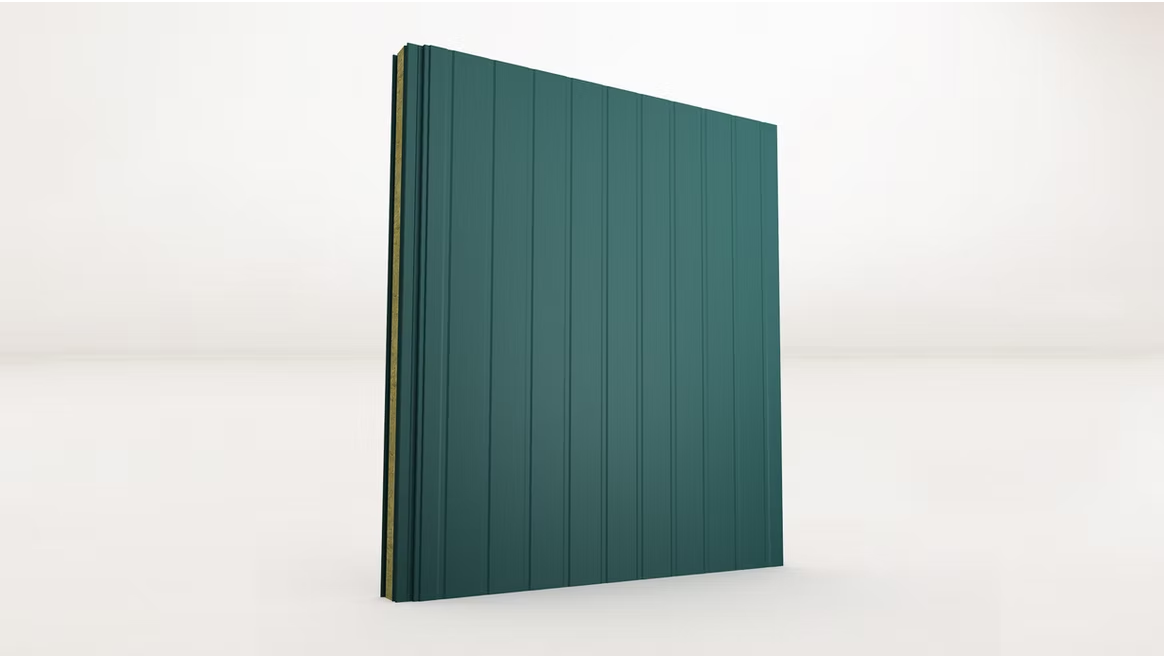

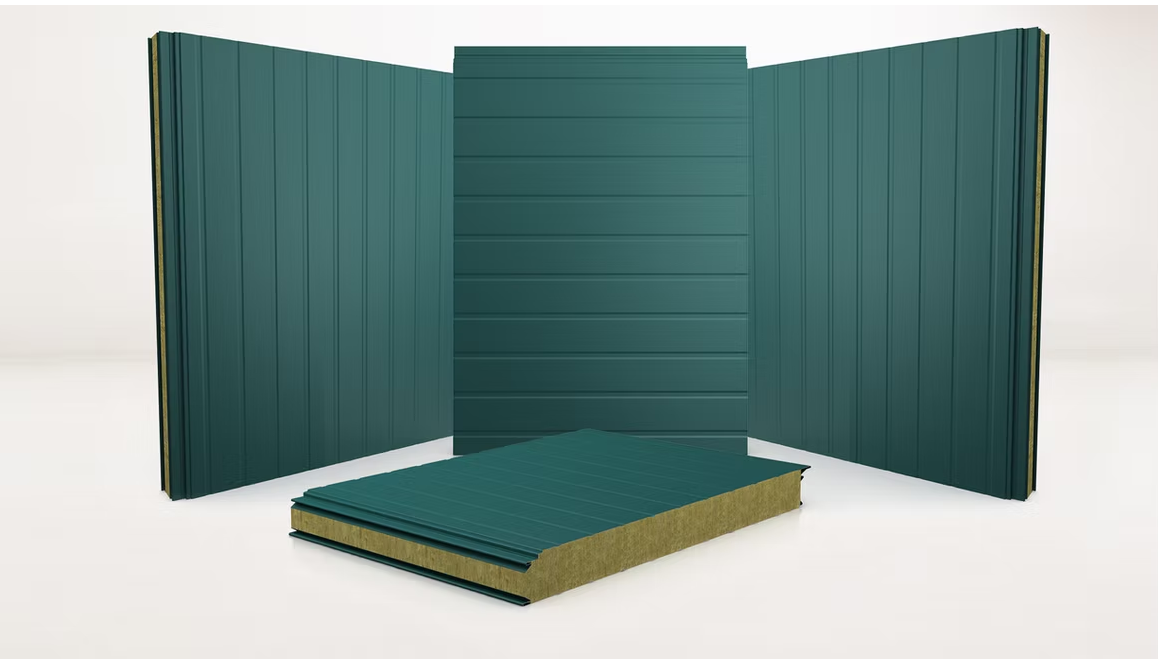

- With connection details that allow for horizontal and vertical installation, the panels offer aesthetic alternatives with micro wave, micro lined and groove surface shapes.
- Our externally screwed sandwich facade panels, which are especially preferred in container manufacturing, prefabricated buildings, interior partitions and fire corridors, provide superior performance.
- Thanks to its fire resistance and fiber structure, rockwool provides excellent sound absorption and is the best insulation material for sound insulation.
Technical Specifications
- Insulation Thicknesses
- 50-60-75-80-100-120-150 mm
- Insulation Density
- Rockwool 90-100-110 120-130 kg/m3 - Glasswool 52 kg/m3
- Metal Thickness/Inner Surface/BGS
- 0.40-0.50-0.60-0.70-0.80 mm
- Metal Thickness/External Surface/BGS
- 0.50-0.60-0.70-0.80 mm
- Thermal Conductivity Coefficient
- Rockwool λ = 0.038 W/mK Glasswool λ = 0.032 W/mK
- Fire Class/Rock Wool
- A2 - s1, d0
- Fire Class/Glass Wool
- A2 - s2, d0
