Half Sinusoidal Facade Panel with PUR/PIR Insulation
Overview

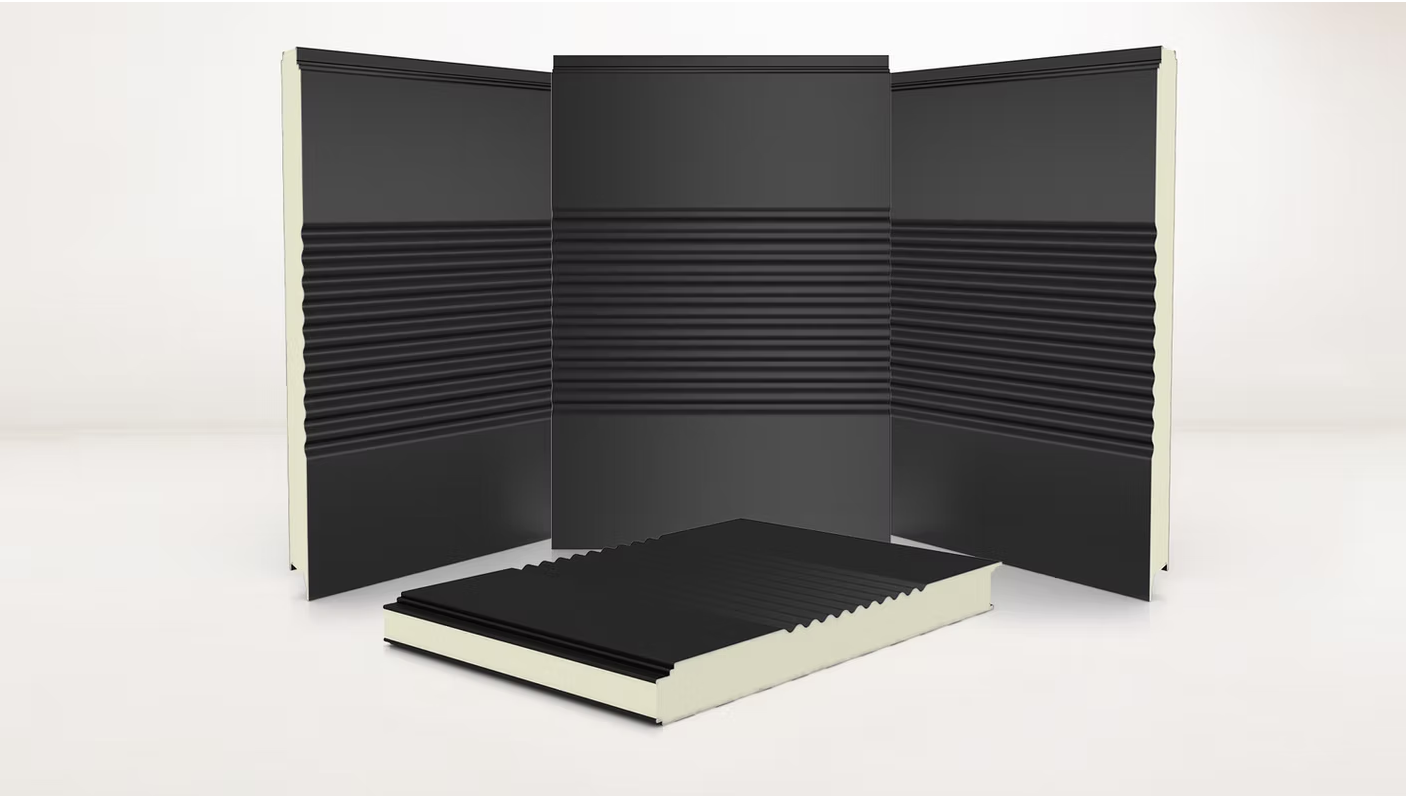

- Semi-sinus shaped hidden screwed PUR/PIR insulated facade panel offers aesthetic and different facades to your buildings.

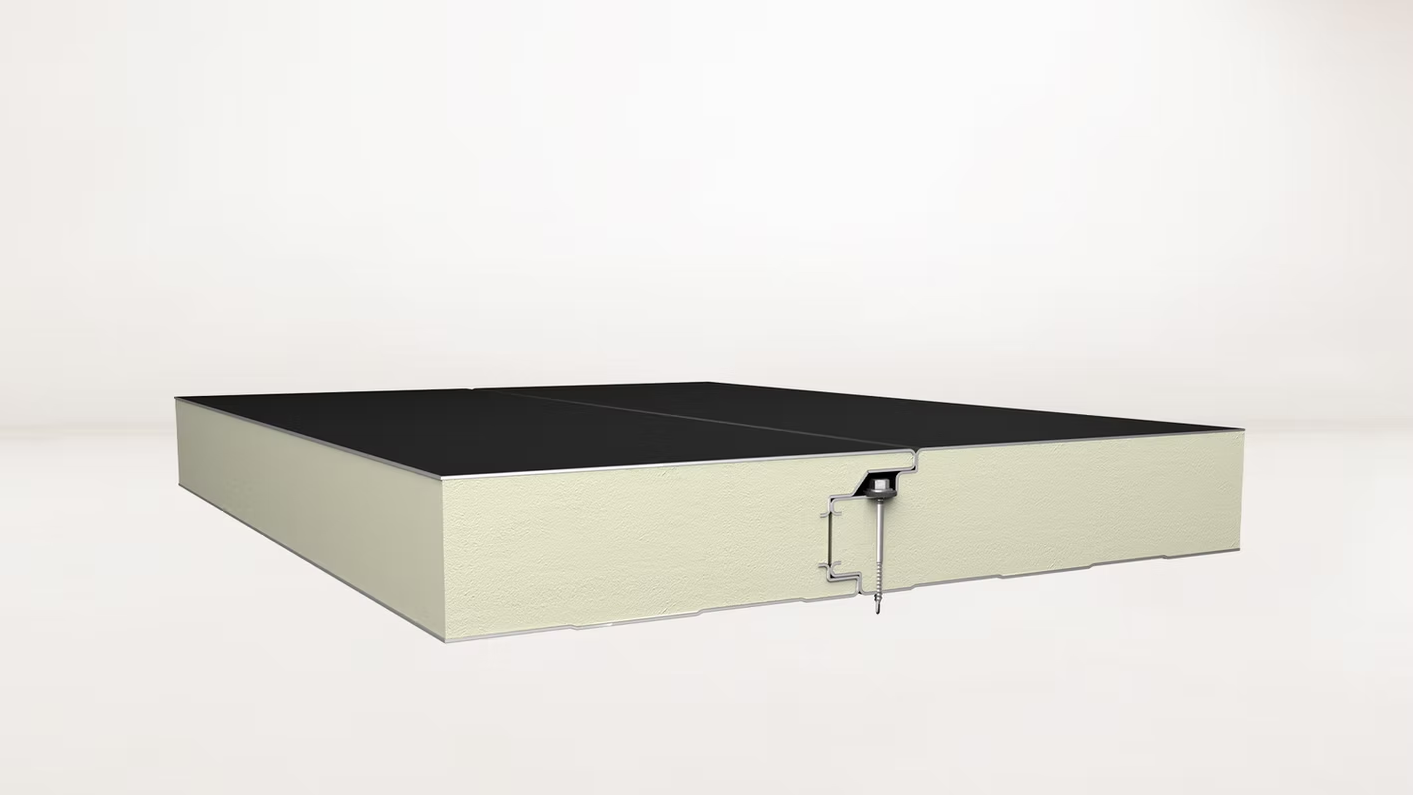

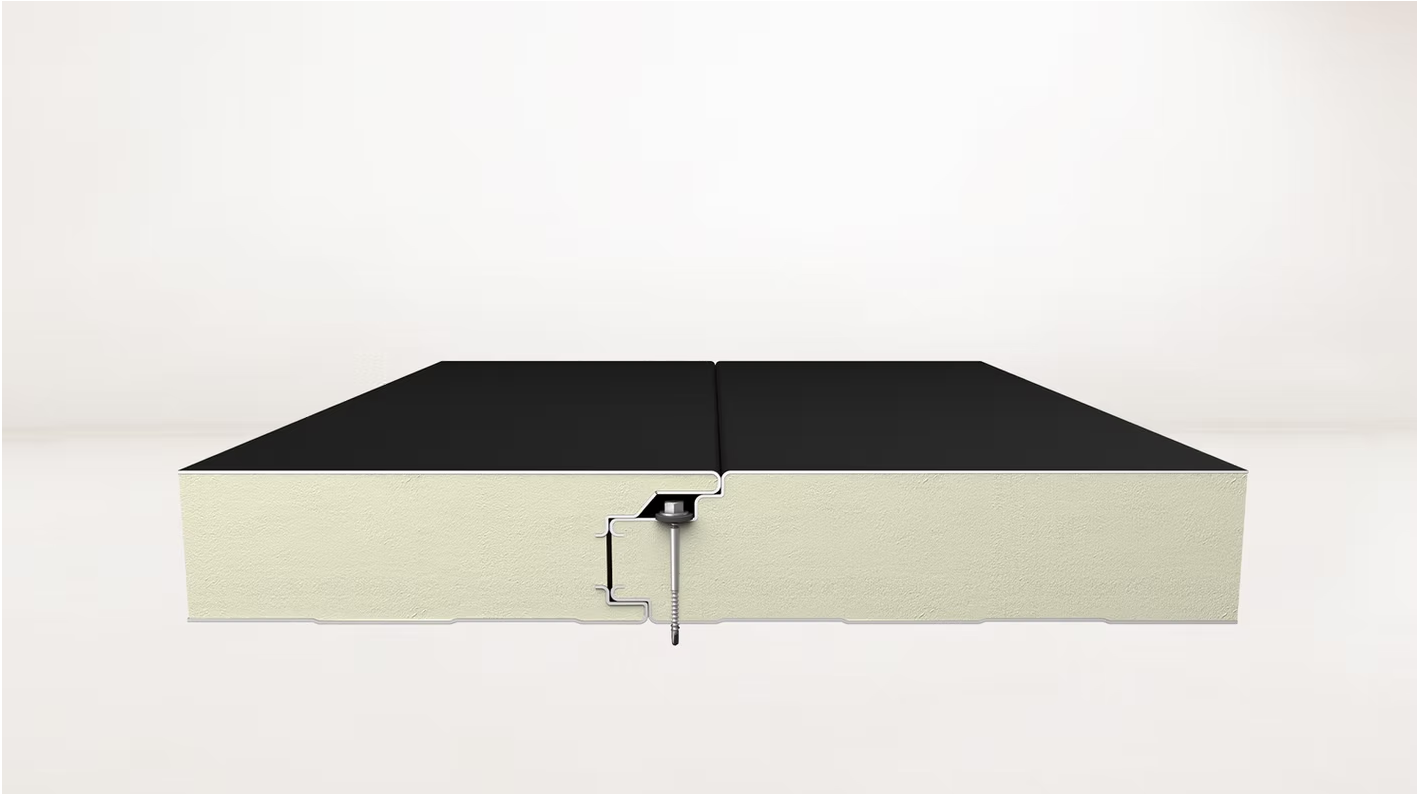

- Thanks to the hidden screw form, the connection screws are invisible from the outside and provide protection against external factors.

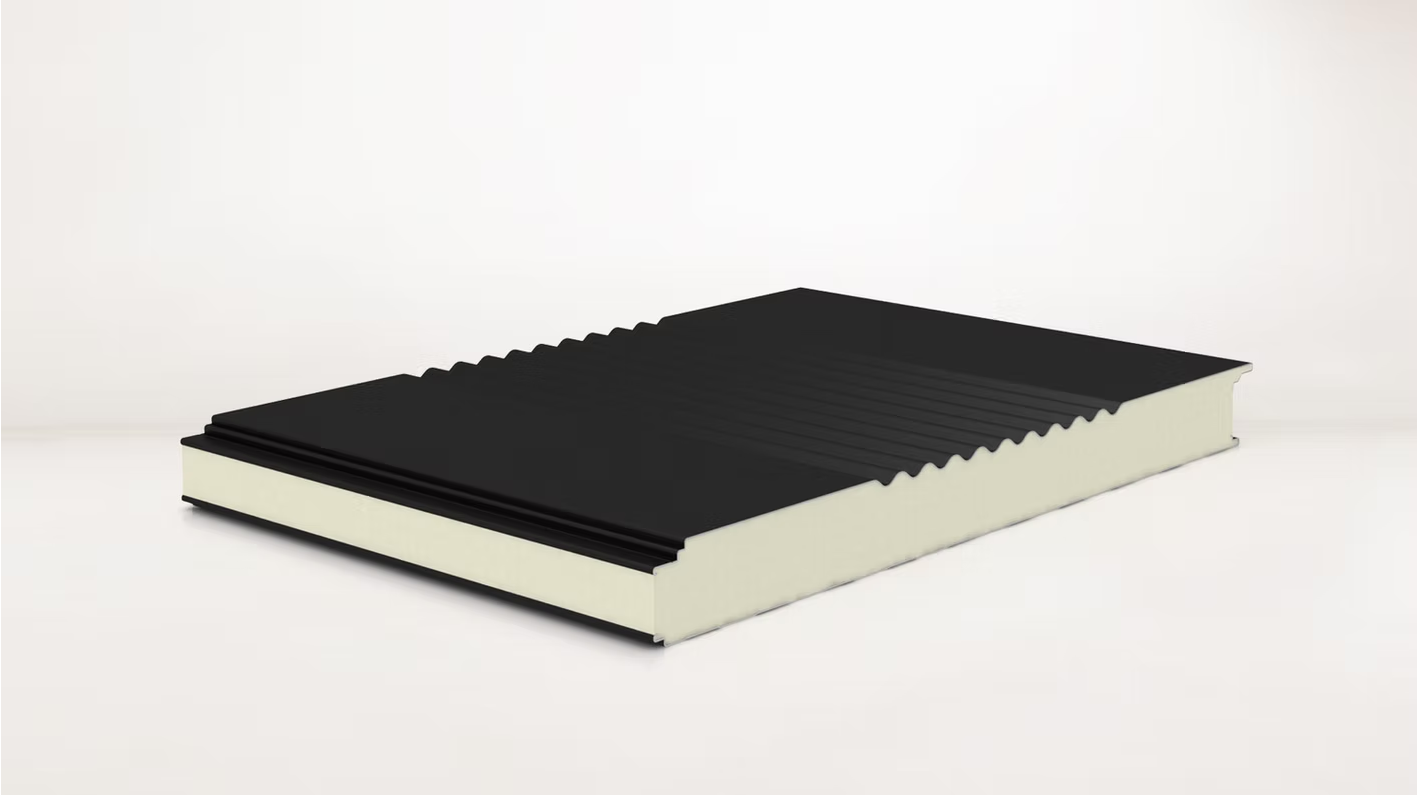

- Compatible with sine and concealed screw panels, this insulated panel is available with flat and micro-lined surface options.
- It is produced with PIR and PUR filling materials and protects your structures from water, heat and sound while also offering fire resistance.
- Offering a high-performance closed cell solution, the PIR insulation-filled option provides unparalleled thermal performance.
- The Semi-Sinus Facade Panel provides flexibility and easy installation by offering both horizontal and vertical installation possibilities.
- Sandwich panels, which can be produced in various color options, are resistant to thermal conditions and provide maximum resistance to external factors.
Technical Specifications
- Insulation Thicknesses
- 40-50-60mm
- Insulation Density
- PUR 40 (±2) kg/m3
- PIR 42 (±2) kg/m3
- Metal Thickness/Inner Surface/BGS
- 0.40-0.50-0.60-0.70-0.80 mm
- Metal Thickness/External Surface/BGS
- 0.50-0.60-0.70-0.80 mm
- Thermal Conductivity Coefficient
- λ = 0.022 W/Mk
- Fire Class/PUR
- Bs3d0 EN 13501-1, Bs2d0 EN 13501-1, Cs2d0 EN 13501-1, Cs3d0 EN 13501-1
- Fire Class/PIR
- Bs1d0 EN 13501-1, FM, Bs2d0 EN 13501-1
