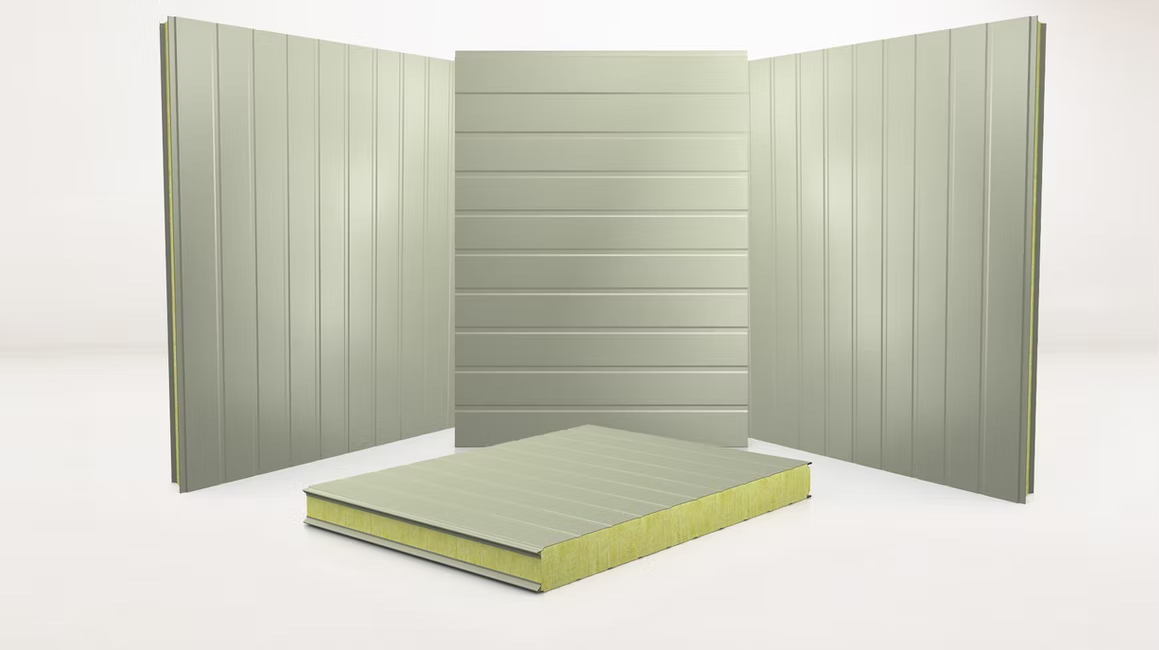

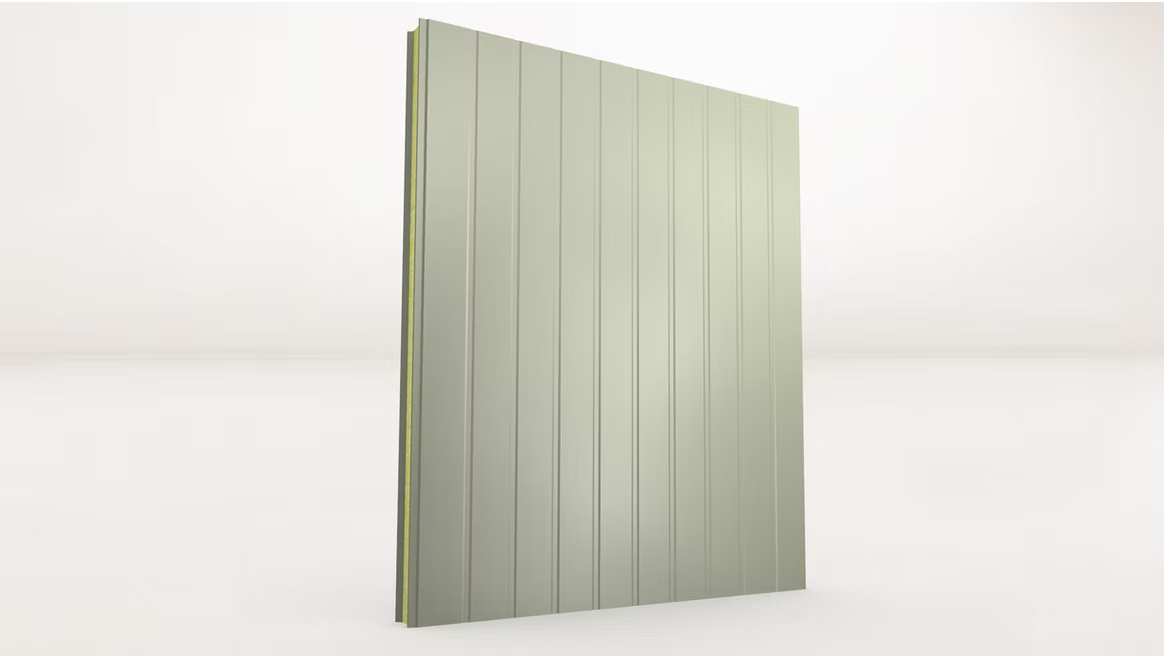

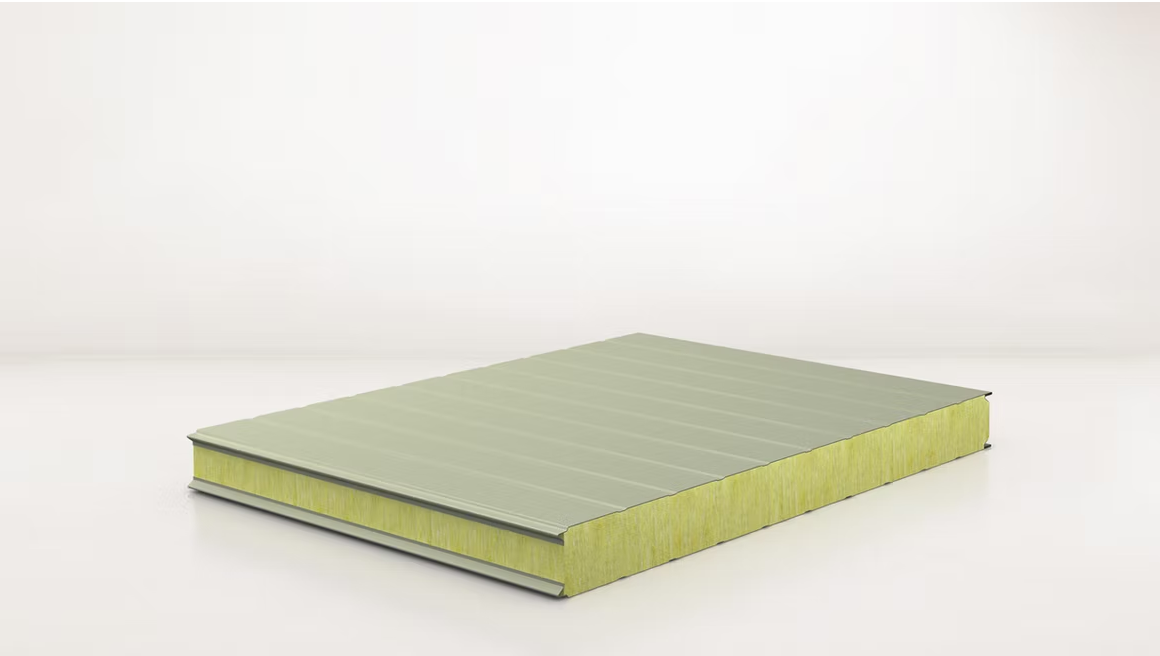

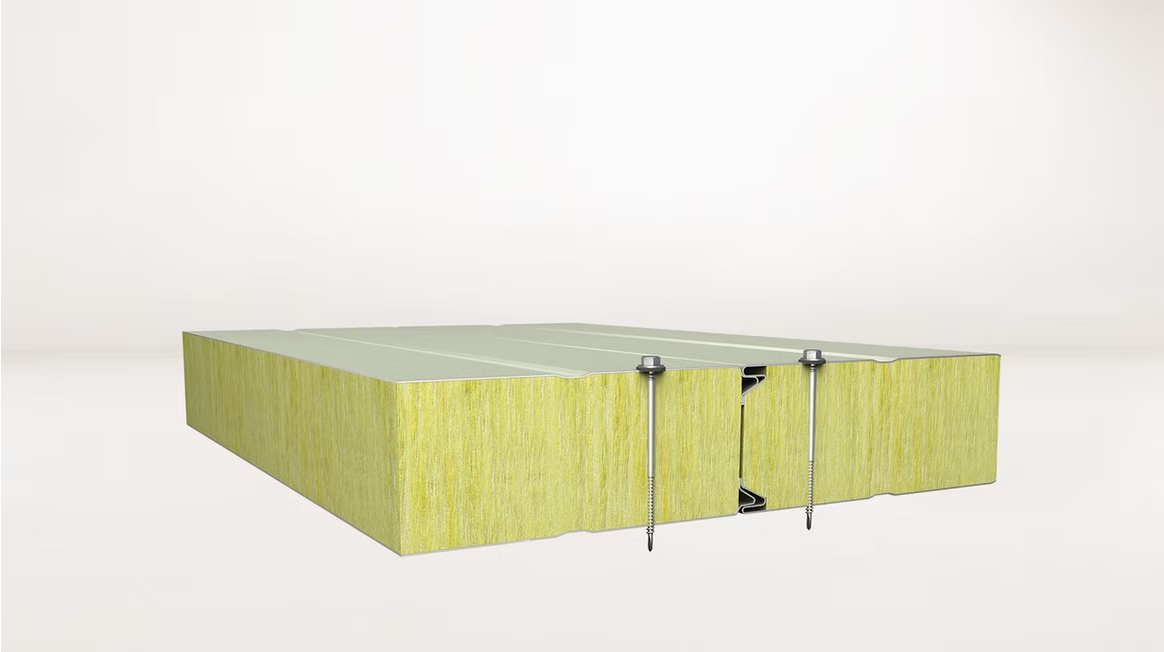

External Screwed Facade Panel with Rockwool/Glasswool Insulation
Overview
- Externally screwed facade panels are sandwich panels preferred especially in container manufacturing and prefabricated buildings.
- Our sandwich panels can be applied in interior partitions and are ideal for use in fire corridors.
- Our externally screwed facade panels offer economical solutions for your projects with their rock wool and glass wool insulated options.
- Thanks to its details suitable for horizontal and vertical installation, it protects your buildings with its heat, water, sound and high fire resistance.
- Increases safety with high fire resistance.
- Sandwich panels, micro ribs and standard surface shapes provide an aesthetic appearance.
Technical Specifications
- Insulation Thicknesses
- 50-60-75-80-100-120-150 mm
- Insulation Density
- Rockwool 90-100-110 120-130 kg/m3 Glasswool 52 kg/m3
- Metal Thickness/Inner Surface/BGS
- 0.40-0.50-0.60-0.70-80mm
- Metal Thickness/External Surface/BGS
- 0.50-0.60-0.70-0.80 mm
- Thermal Conductivity Coefficient
- Rockwool λ = 0.038 W/mK Glasswool λ = 0.032 W/mK
- Fire Class/Rock Wool
- A2 - s1, d0
- Fire Class/Glass Wool
- A2 - s2, d0
