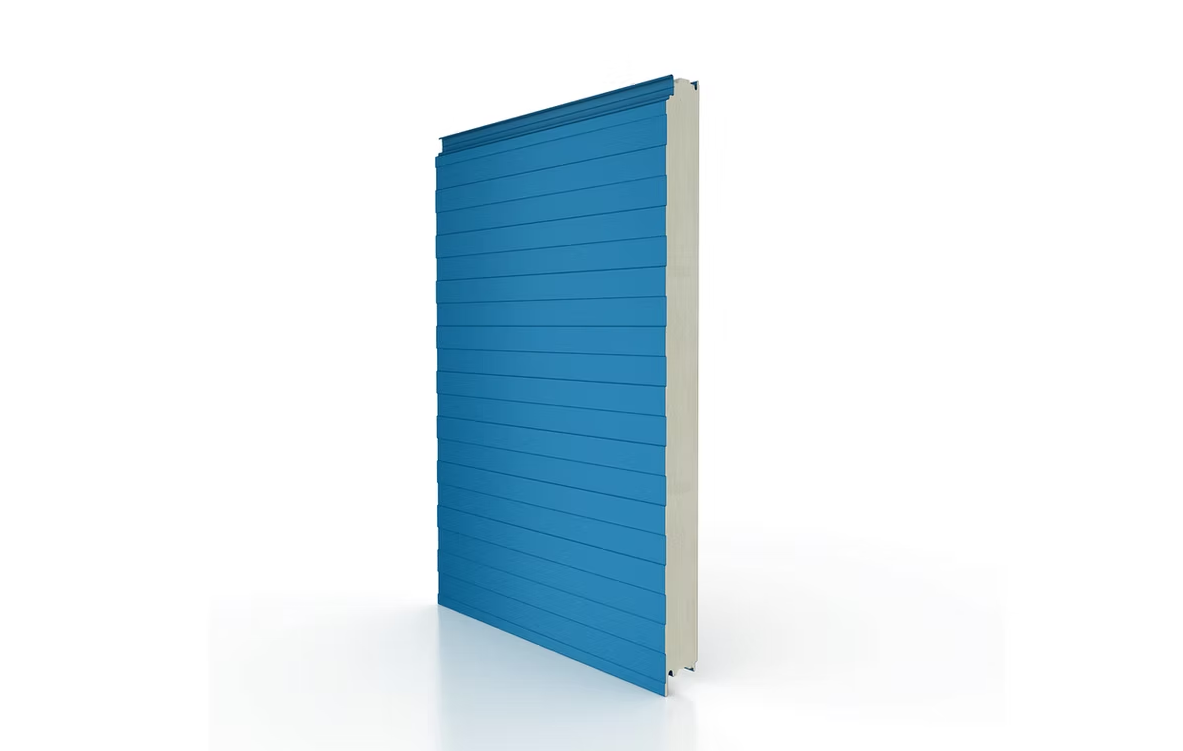

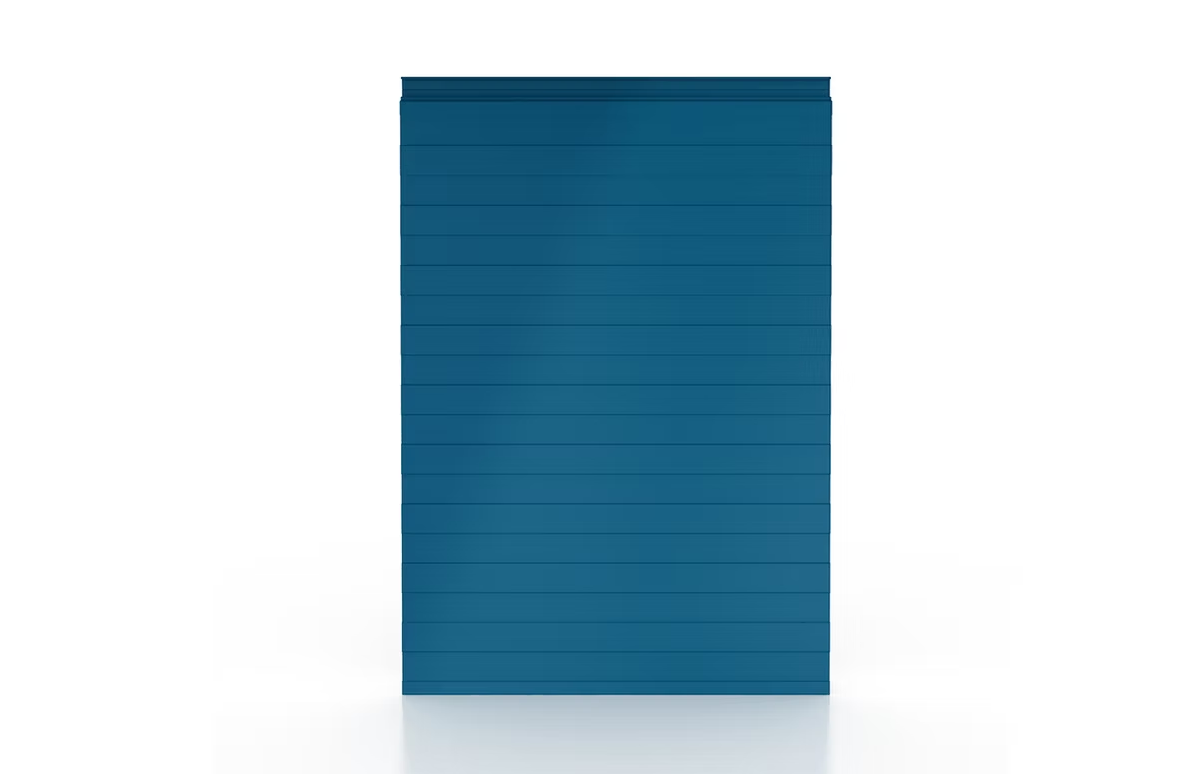

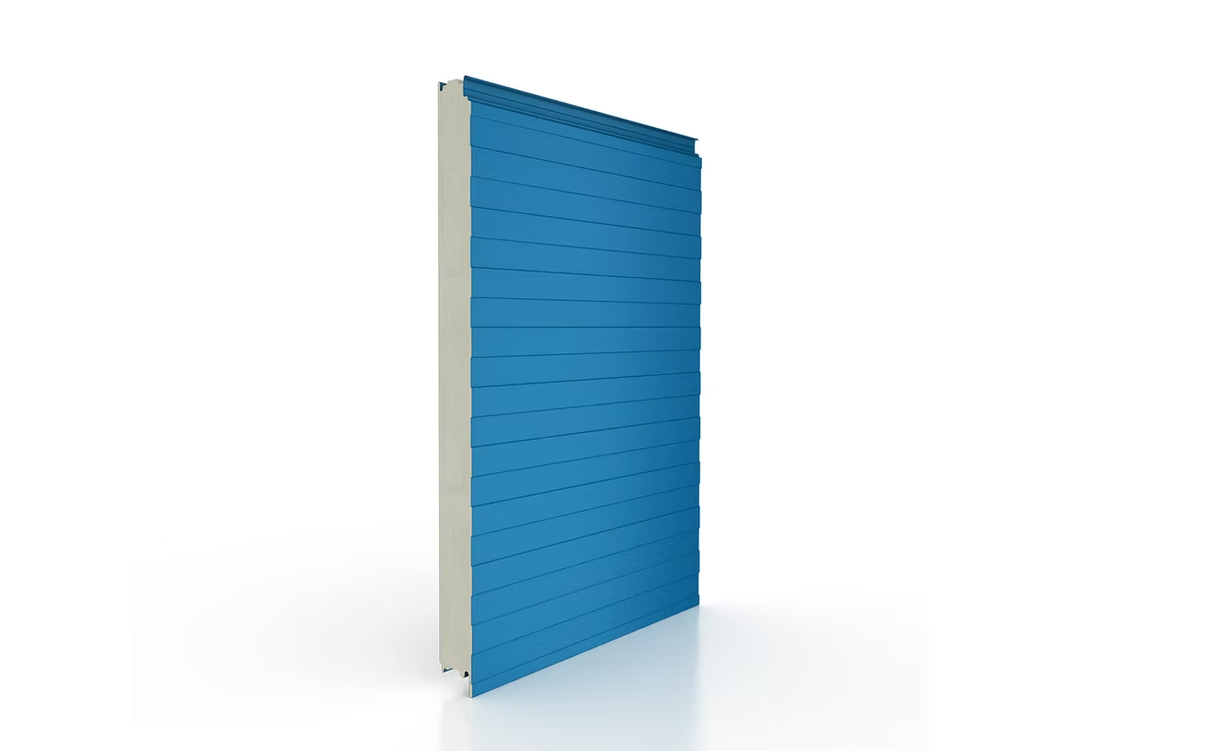

ALFACORE Hidden Screw PIR/PUR Facade Panel
Overview
It provides high energy efficiency with its superior insulation properties. Its hidden screw connection provides protection from external factors and an aesthetic appearance. Its environmentally friendly and sustainable structure adds elegance to your facades with a variety of color options.
Technical Specifications
- Insulation Thicknesses
- 40-50-60-80-100-120-150-200
- Insulation Density
- PUR 40 (±2) kg/m³
- PIR 42 (±2) kg/m³
- Metal Thickness/Inner Surface/BGS
- (min-max) 0.30-0.80 mm
- Metal Thickness/External Surface/BGS
- (min-max) 0.30-0.80 mm
- Thermal Conductivity Coefficient
- λ = 0.022 W/mK
- Prestige λ= 0.018 W/mK
- Fire Class/PUR
- B s3 d0 - EN 13501-1
- C s2 d0 - EN 13501-1
- C s3 d0 - EN 13501-1
- Fire Class/PIR
- B s1 d0 - EN 13501-1, FM
- B s1 d0 - EN 13501-1
- B s2 d0 - EN 13501-1
