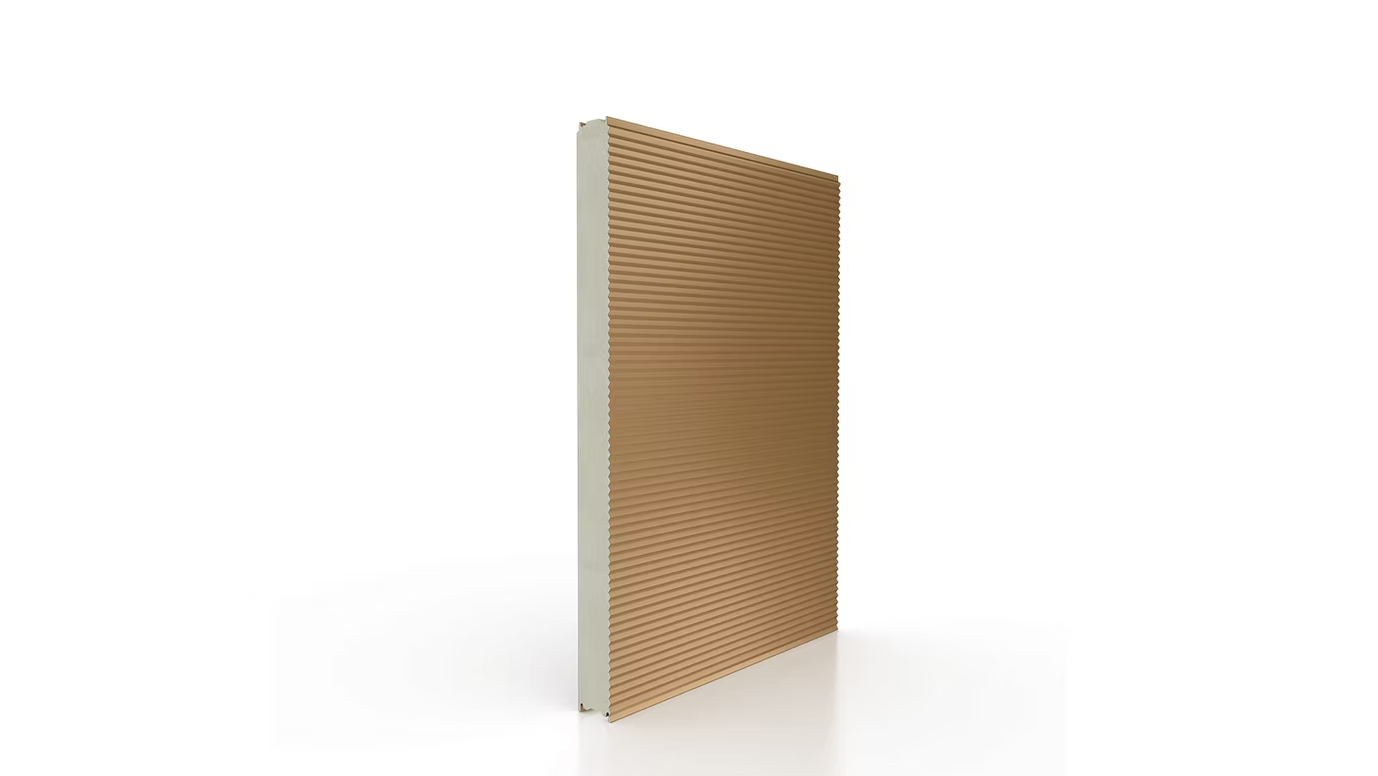

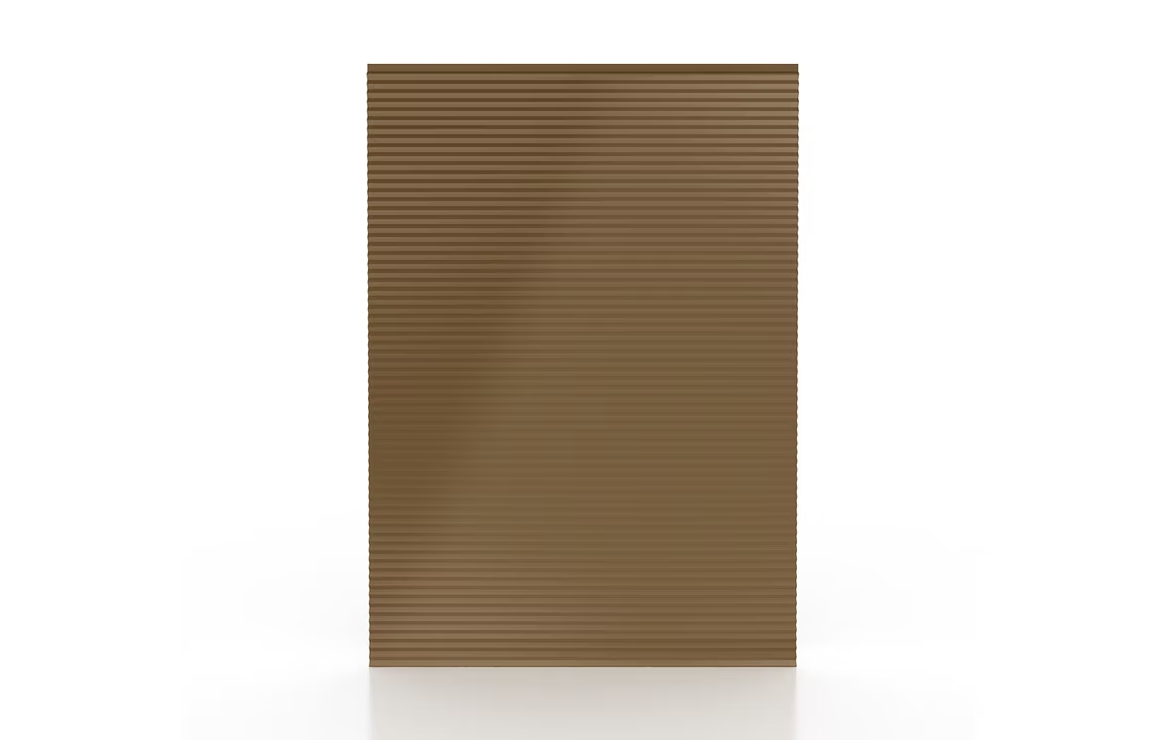

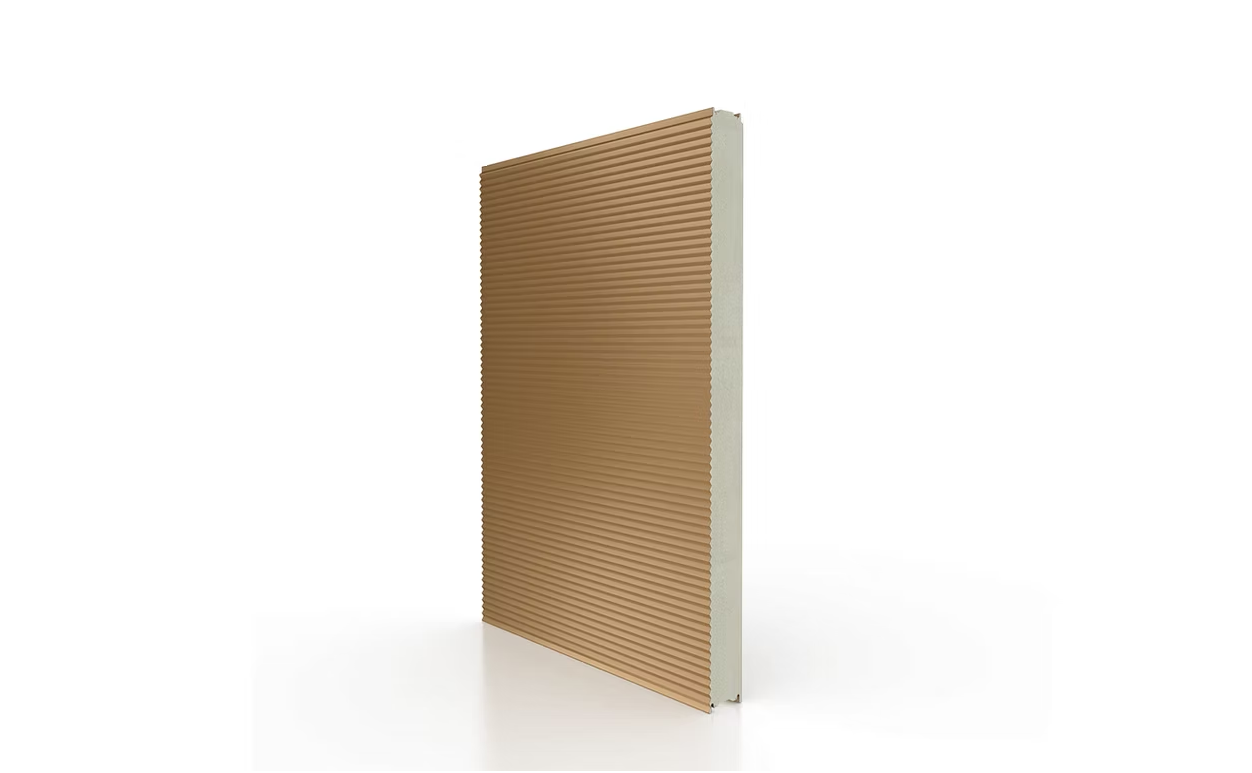

ALFACORE External Screw PIR/PUR Facade Panel
Overview
It’s frequently preferred in container manufacturing and prefabricated buildings. Its high insulation capacity makes it safe for use in cold room projects. Its external screw mounting ensures easy installation. With a variety of color options and an aesthetically pleasing appearance, it’s an ideal and sustainable solution for modern facades.
Technical Specifications
- Insulation Thicknesses
- 30-40-50-60-80-100-120-150-200
- Insulation Density
- PUR 40 (±2) kg/m³
- PIR 42 (±2) kg/m³
- Metal Thickness/Inner Surface/BGS
- (min-max) 0.30-0.80 mm
- Metal Thickness/External Surface/BGS
- (min-max) 0.30-0.80 mm
- Thermal Conductivity Coefficient
- λ = 0.022 W/mK
- Prestige λ= 0.018 W/mK
- Fire Class/PUR
- B s3 d0 - EN 13501-1
- C s2 d0 - EN 13501-1
- C s3 d0 - EN 13501-1
- Fire Class/PIR
- B s1 d0 - EN 13501-1, FM
- B s1 d0 - EN 13501-1
- B s2 d0 - EN 13501-1
