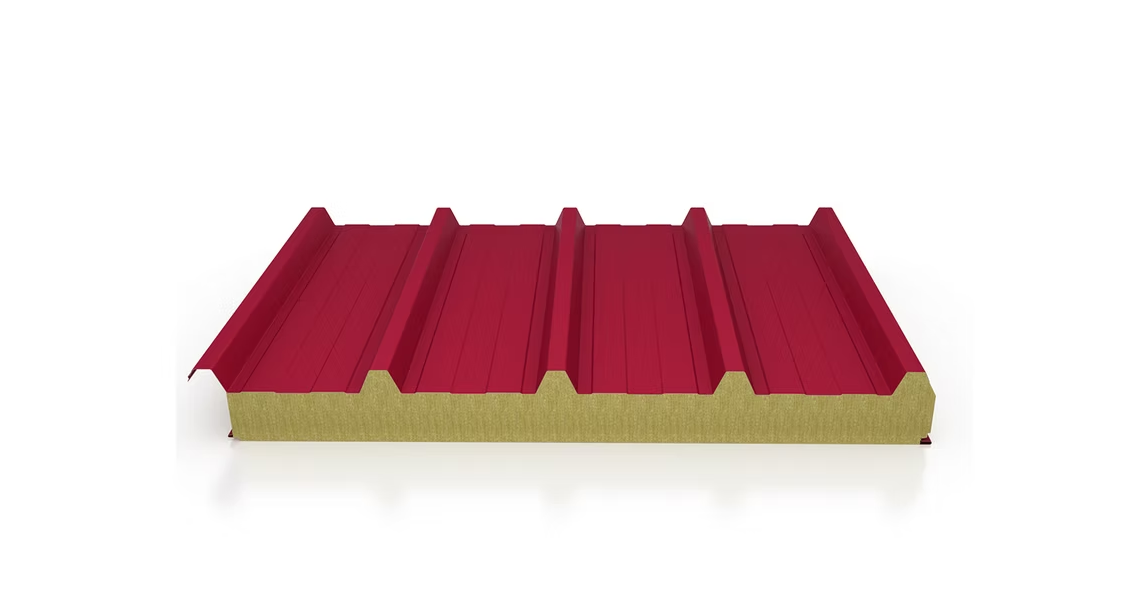

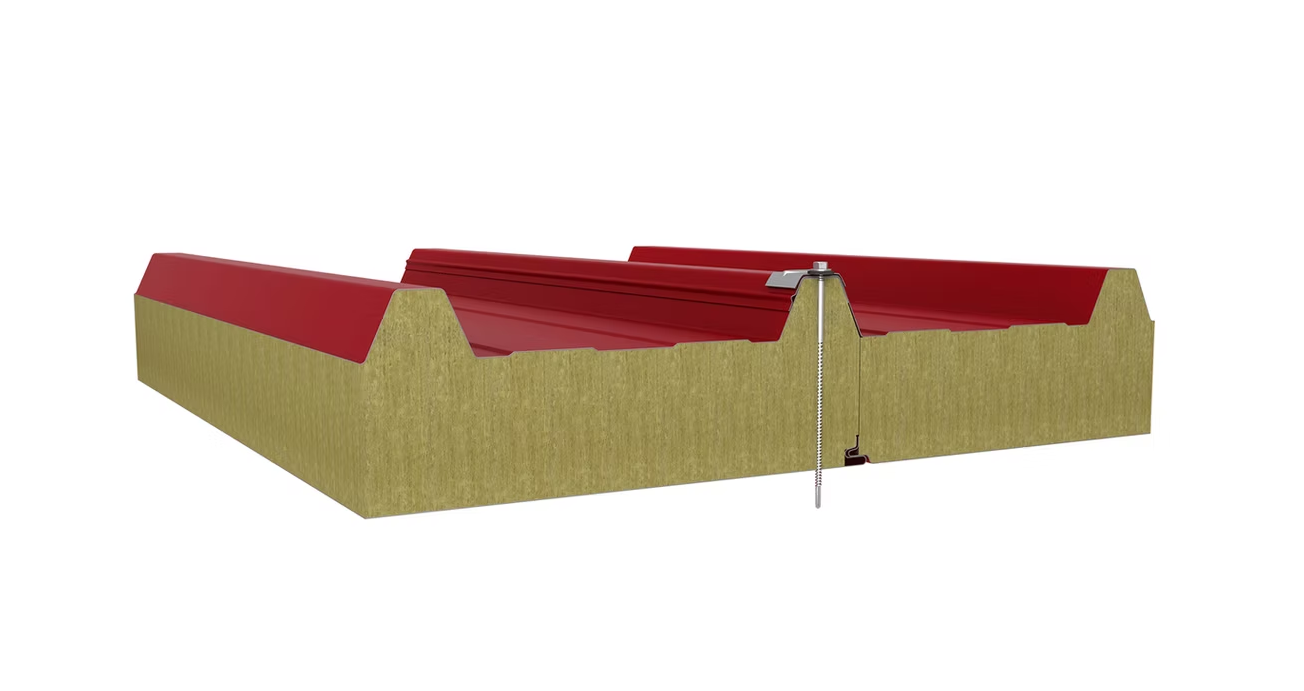

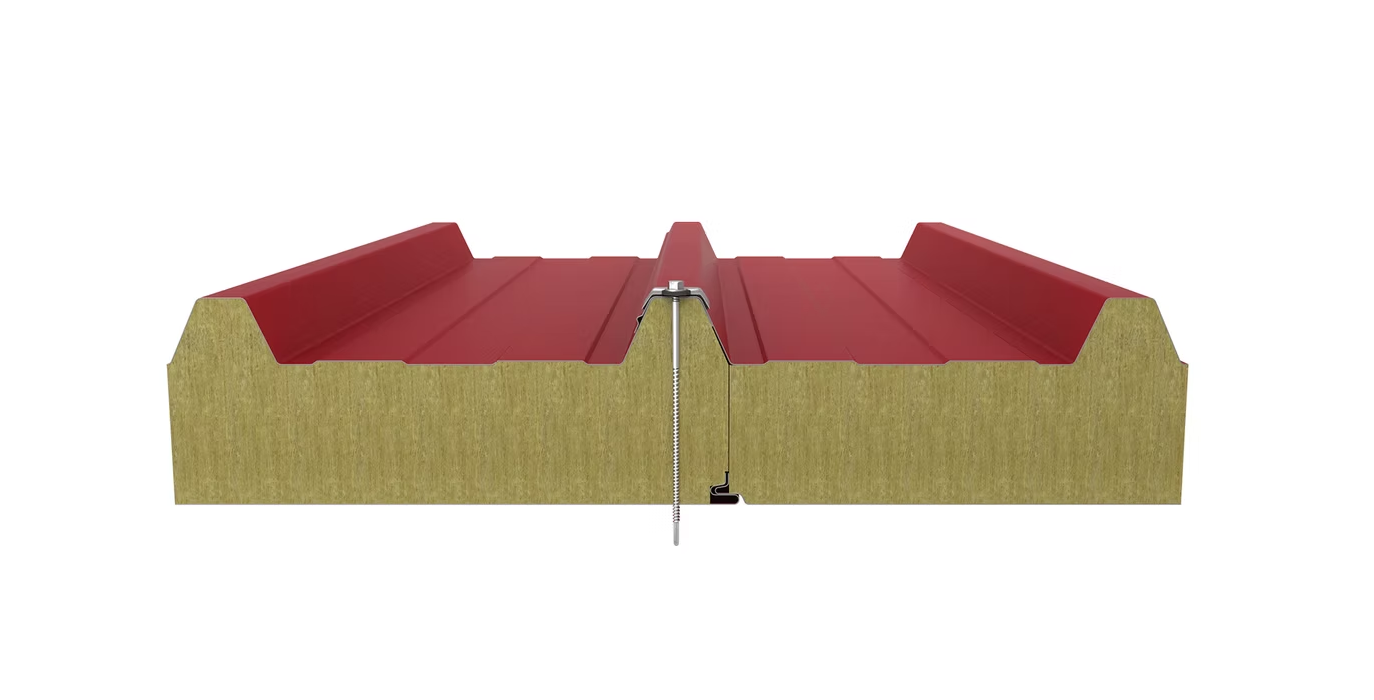

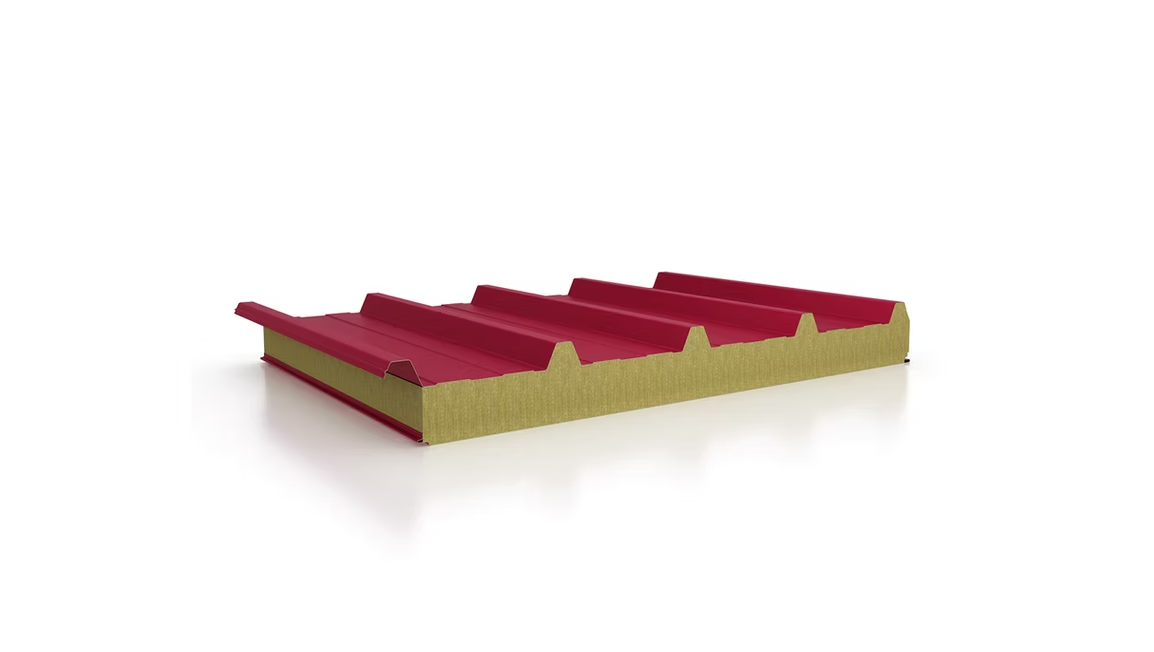

ALFACORE External Screw 3R-5R Rockwool Roof Panel
Overview
Our 3- and 5-ribbed sandwich panels offer safe performance with their fireproof properties, while their durability creates a long-lasting solution. Their aesthetic design and robust construction make them an ideal choice for your projects.
Technical Specifications
- Insulation Thicknesses
- 40-50-60-80-100-133-150-172-200-240
- Insulation Density
- Rockwool
- 100 (±10) kg/m3
- 110 (±10) kg/m3
- 120 (±10) kg/m3
- 130 (±10) kg/m3
- Metal Thickness/Inner Surface/BGS
- (min-max) 0.30-0.80 mm
- Metal Thickness/External Surface/BGS
- (min-max) 0.30-0.80 mm
- Thermal Conductivity Coefficient
- λ = 0.038 W/mK
- Fire Class/Rock Wool
- A2 s1 d0
