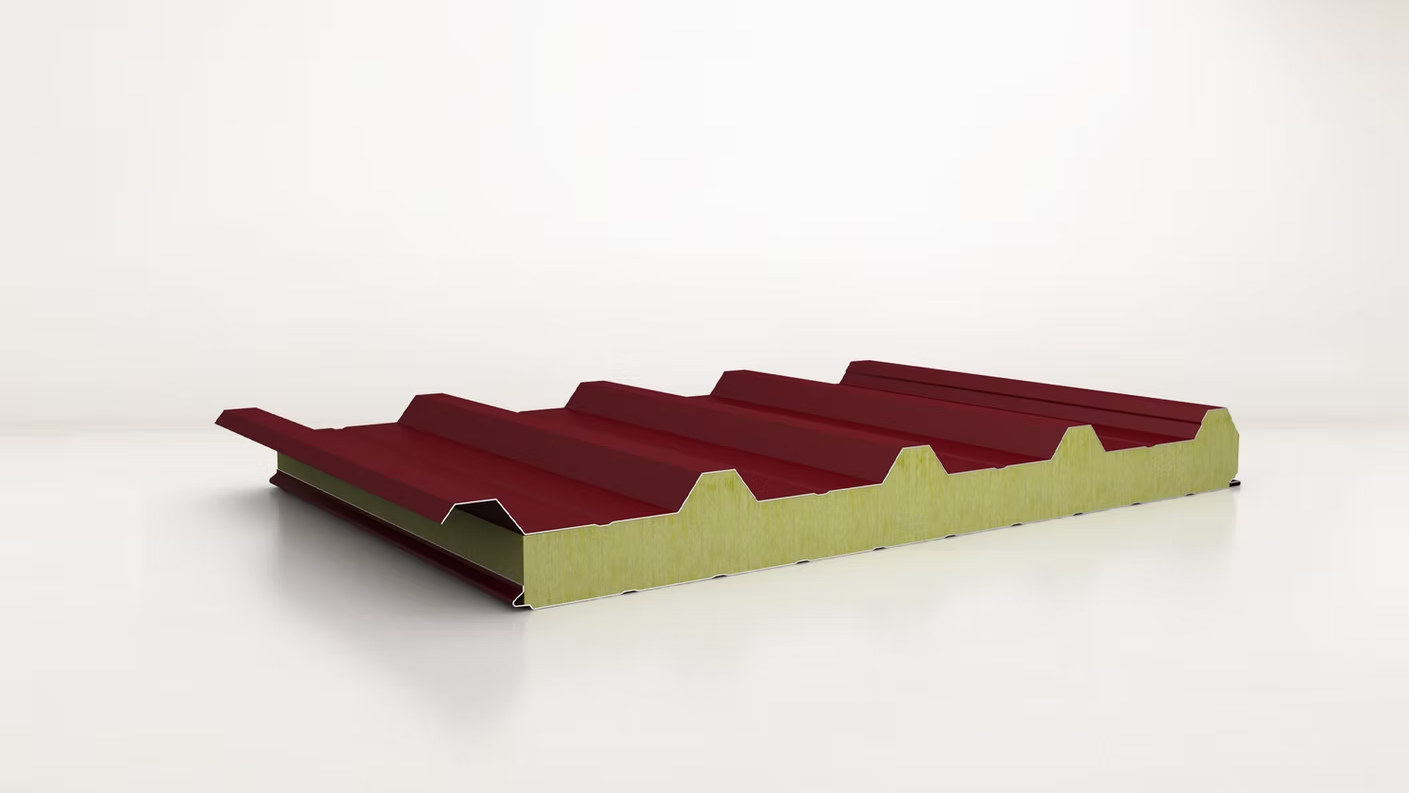

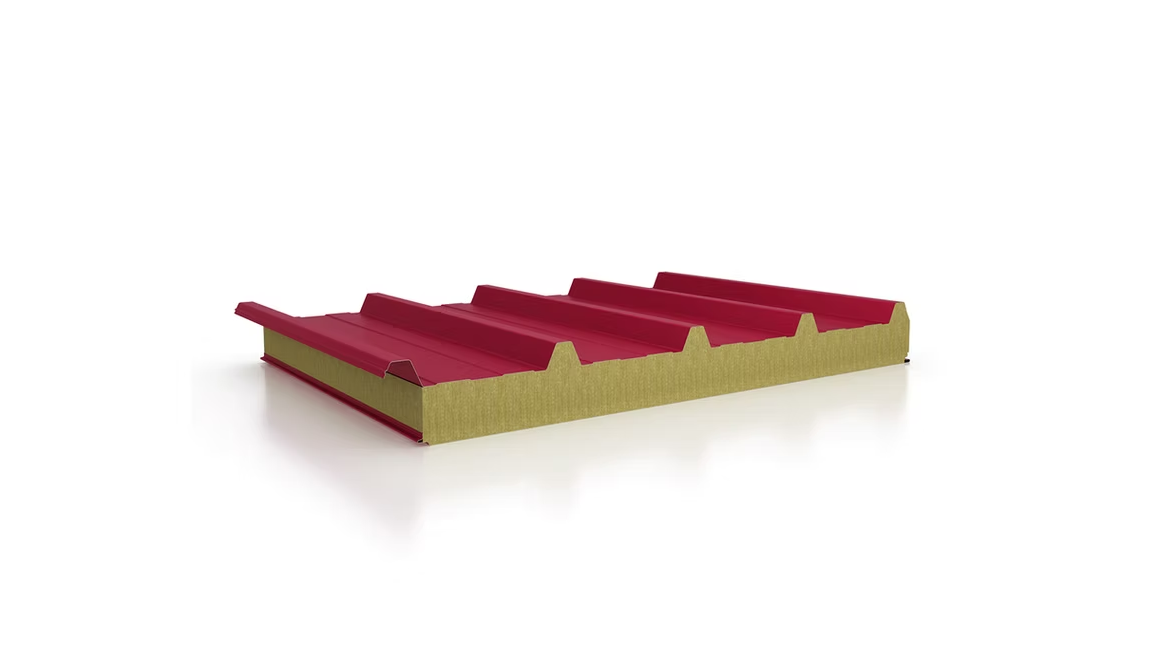

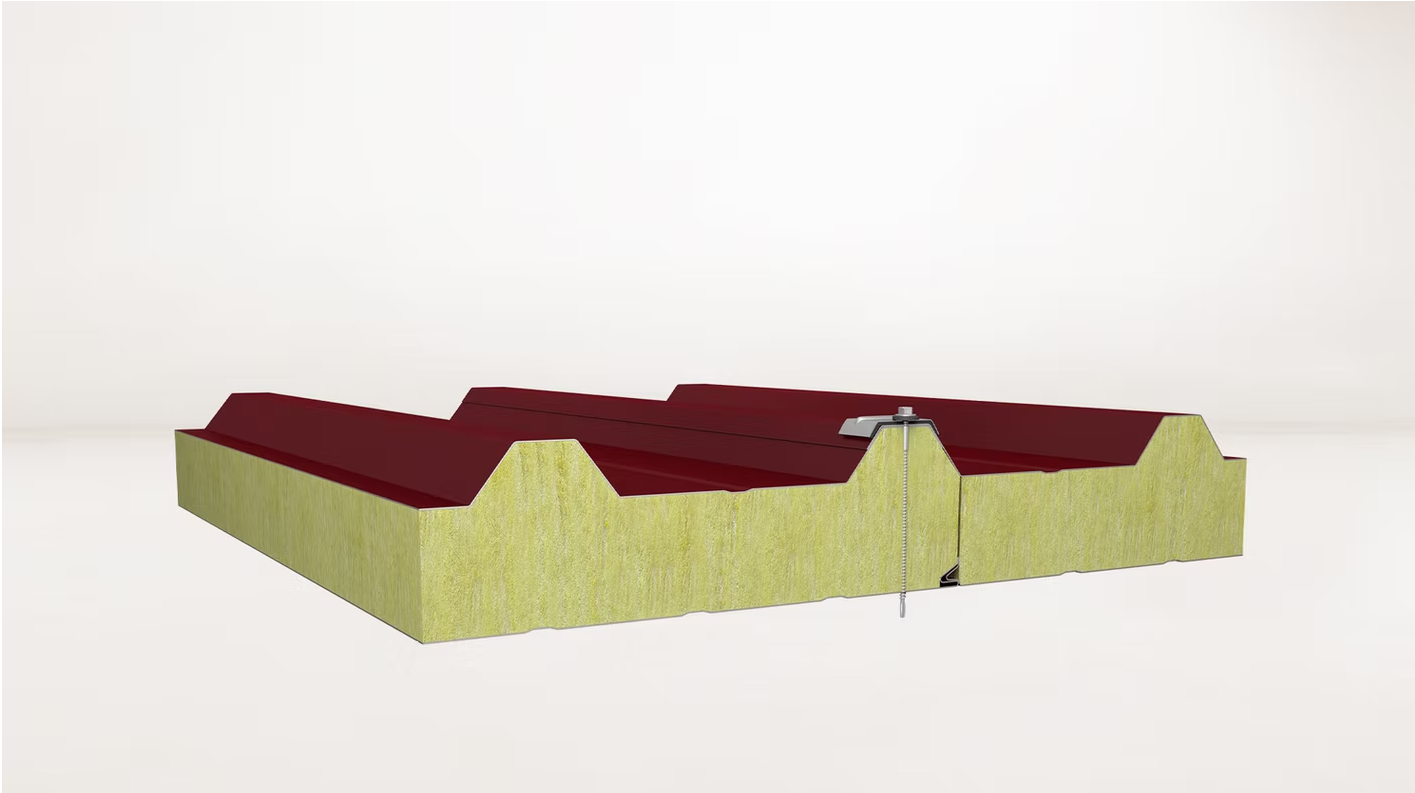

5 Ribbed External Screw Roof Panel / Rockwool / Glasswool Insulation
Overview

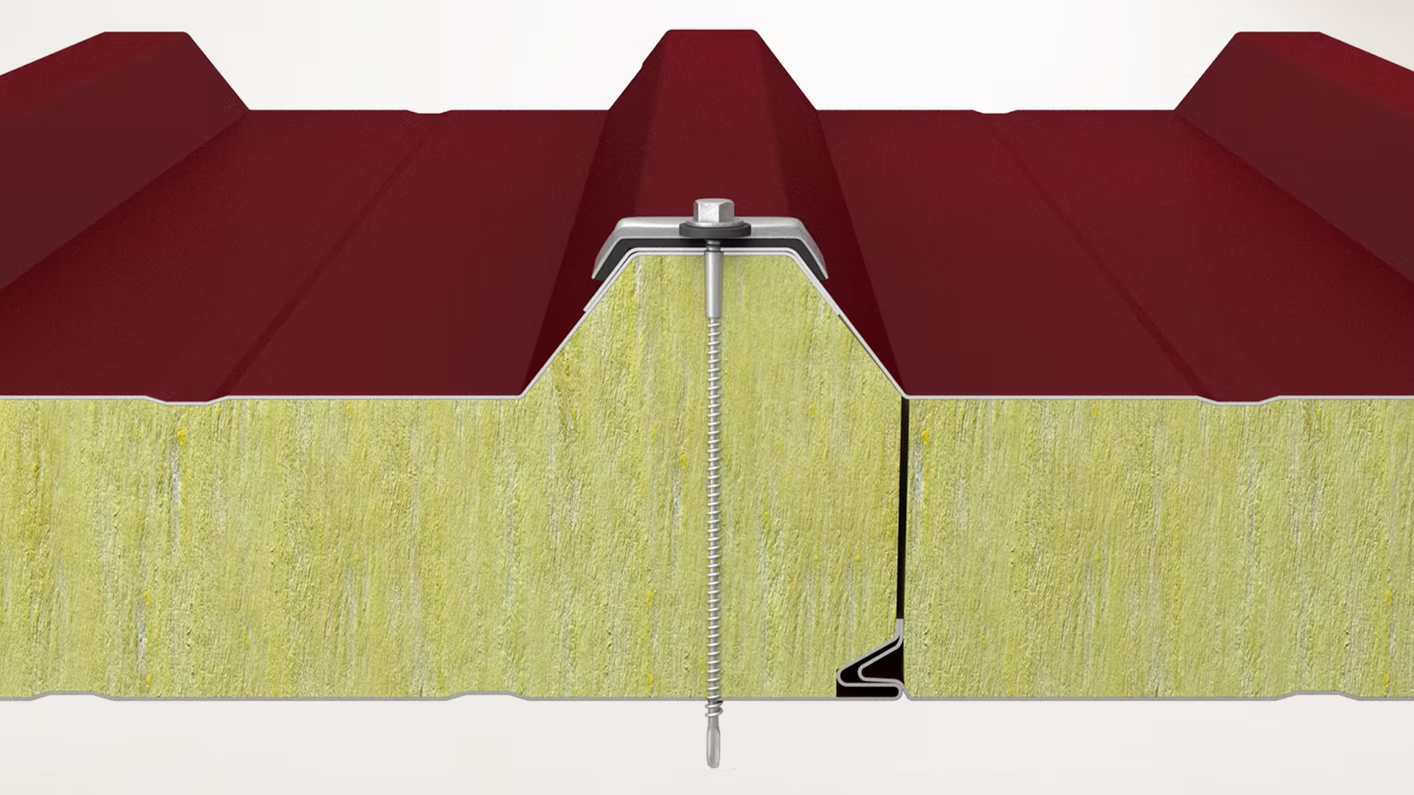

- Our rock wool and glass wool insulated externally screwed roof panels are a preferred option in buildings requiring high fire safety.
- The rockwool filled alternative offers a safe roof solution for your buildings thanks to its resistance to flames.
- Our panels, produced in 5-ribbed form, allow for reverse installation on roofs and meet your heat, sound, fire and water insulation needs by combining with different waterproofing materials on low-slope roofs.
- Our glass wool insulated panels are suitable for use with aluminum and BGS metal.
- Our rockwool filled panels have A2 class fire resistance and are highly resistant to fire.
- With these features, they ensure fire safety in your buildings and also provide the high heat and water insulation required on the roof.
- Our rockwool and glasswool insulated externally screwed roof panels provide a durable and safe roof solution.
Technical Specifications
- Insulation Thicknesses
- Rockwool 50-60-75-80-100-120-150 mm Glasswool 50-60-75-80-100-120-150 mm
- Insulation Density
- Rockwool 90-100-110 120-130 kg/m3 Glasswool 52 kg/m3
- Metal Thickness/Inner Surface/BGS
- Rockwool 0.40-0.50-0.60-0.70-0.80 mm Glasswool 0.40-0.50-0.60-0.70-0.80 mm
- Metal Thickness/External Surface/BGS
- Rockwool 0.50-0.60-0.70-80 mm
- Glasswool 0.50-0.60-0.70 0.80 mm
- Thermal Conductivity Coefficient
- Rockwool λ = 0.038 W/mK
- Glasswool λ = 0.032W/mK
- Fire Class/Rock Wool
- A2 - s1, d0 TSEN 13501-1
- Fire Class/Glass Wool
- A2 - s2, d0 TSEN 13501-1
